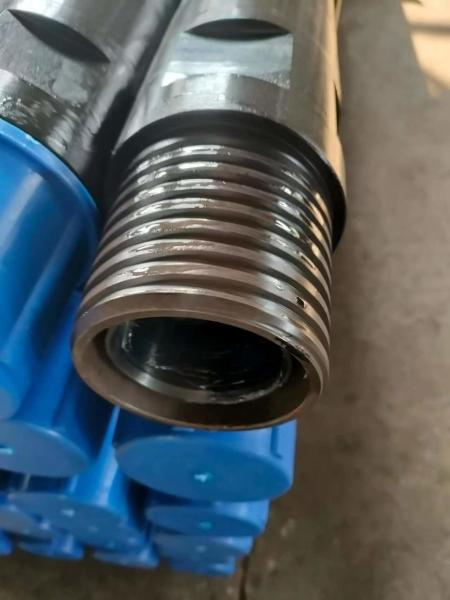

114mm Od RC Drill Rods for water well high grade steel
Product Description:
Double-arm drill pipe is also called double-layer drill pipe. It is composed of inner and outer drill pipes (called inner pipe and outer pipe). The inner and outer pipes form an annulus, which is a channel for pumping the flushing medium to the bottom of the hole during hydraulic rock drilling and center sampling drilling. The central hole of the inner tube is used to discharge the flushing medium and is integrally fixed, and the threaded button of the outer tube is connected between each double-wall drill pipe to ensure the transmission of torque and pressure. However, plug-in connections are often used between the inner pipes, which generally only serve as a circulating flushing medium. Therefore, a sealing device should be installed at the insertion point.
Double wall drill pipe
| Type | O.D.of the outer tube (mm) | I.D.of the inner tube (mm) | Outer dianeter of joint (mm) | Type of threads | Effective length (m) |
| WB114/65 | 114 | 65 | 156 | 41F | 6 |
| WB127/76 | 127 | 76 | 162/168 | 41/21F | 6 , 9.5 |
| DB127/76 | 127 | 76 | 184 | 51/2FH | 9.5 |
| WB140/88 | 139.7 | 88 | 184 | 51/2FH | 6,9.5 |
| WB219/130 | 219 | 130 | 240 | Factory standard | 6,9.5 |
| WK76/32 | 76 | 32 | 78 | 3" Remet | 3 |
| WK102/41 | 102 | 41 | 103 | 4" Remet | 3 , 6 |
| WK114/52 | 114.3 | 52 | 116 | 4 1/2" Remet | 3 , 6 |
| WK114/38 | 114.3 | 38 | 114.3 | 4 1/2" Metzke | 3 , 6 |
| WK114/50 | 114.3 | 50 | 114.3 | 4 1/2" Remet | 3 , 6 |
Advantage
This series of reverse circulation pipes can increase the
permeability of the lost stratum, reduce the consumption of
drilling fluid, protect the reservoir stratum, and save the cost of
other consumable tools. In addition, the pipeline can be drilled in
two directions to control the drilling. The reverse circulation
kill method can transfer heavy mud directly to the bottom of the
well without periodic circulation, saving time.
