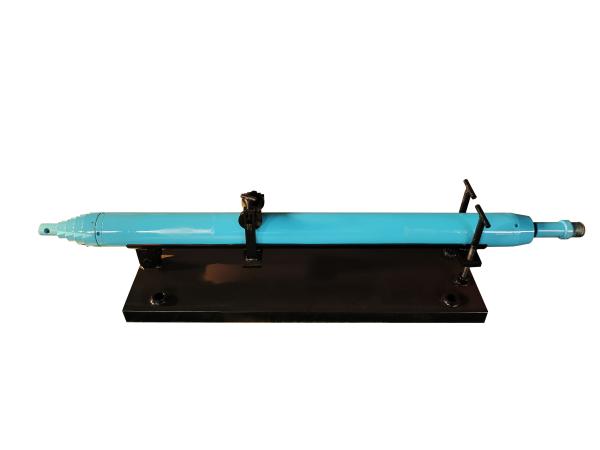

BM series Piping equipment used for punching small pipes
Product Description
In the field of trenchless laying of underground pipelines, pneumatic tamping pipe laying technology has been accepted by the majority of construction units due to its simple construction, high accuracy, fast speed, and low cost. It has become a It is a preferred economical and fast construction method, and is widely used in rescue of horizontal directional drilling projects and the construction of pipe sheds.
| Model | Host outer diameter (mm) | Host length (mm) | Host weight (kg) | Air consumption (m3/min) | Air pressure (MPa) | Instant maximum impact (kN) | Applicable pipe laying diameter (mm) | Standard pipe laying diameter (mm) |
| BH190S | 186/194 | 1320 | 160 | 2-6 | 0.4-0.7 | 1500 | 89-273 | 108,159,219 |
| BH260 | 260/265 | 1390 | 320 | 3-8 | 0.4-0.7 | 2600 | 159-426 | 273,325,426 |
| BH300 | 290/300 | 2100 | 750 | 4-11 | 0.4-0.7 | 4500 | 219-630 | 325,426,529 |
| BH350 | 350/365 | 2400 | 1200 | 6~17 | 0.4-0.7 | 6000 | 273-Φ820 | 426,529,630 |
| BH420 | 415/425 | 2800 | 1950 | 9-21 | 0.4-0.7 | 8000 | 325-1200 | 426,529,630 |
| BH510 | 510/520 | 3200 | 3400 | 12-28 | 0.4-0.7 | 12000 | 426~1500 | 630,720,820 |
| BH610 | 610/620 | 3400 | 5100 | 20-40 | 0.4-0.7 | 20000 | 529-1800 | 820,920,1020 |
| BH650 | 620/650 | 3600 | 5500 | 20-50 | 0.4-0.9 | 25000 | 529~2200 | 820,920,1020 |
| BH700 | 700/710 | 3680 | 7100 | 28-60 | 0.4-0.7 | 28000 | 630-2500 | 1020,1120,1220 |
Advantage
Forward wear ring
The one-piece striker contains a set of wear rings that eliminate
metal-to-metal contact, thereby providing a sustained level of
performance.
Push chuck
The BAIWEI tamper tool can be set into a conical locking chuck,
thereby reducing the time for setting up and disassembly. The chuck
can be fully engaged with the steel housing by 6 inches (152 mm),
thereby firmly locking the tip of the knife on the housing,
eliminating the need for a support frame, and reducing the opening
of the sleeve, thereby saving working time.
Collet jack
For larger size collets, BAIWEI provides collet lifters, which can
easily move, load and unload heavy collets on site.
Accessories
BAIWEI provides a wide range of ramming accessories, such as
lubrication systems, seal kits, balanced collet lifters, pipe pigs
and plunger sleeves. All these are designed to make your next job
more efficient.
