Langfang Budweiser drilling tool manufacturing Co., Ltd
6 Years
| Ask Lasest Price | |
| Brand Name : | BaiWei |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Delivery Time : | 20-30 working days, which will be adjusted according to different products and inventory |

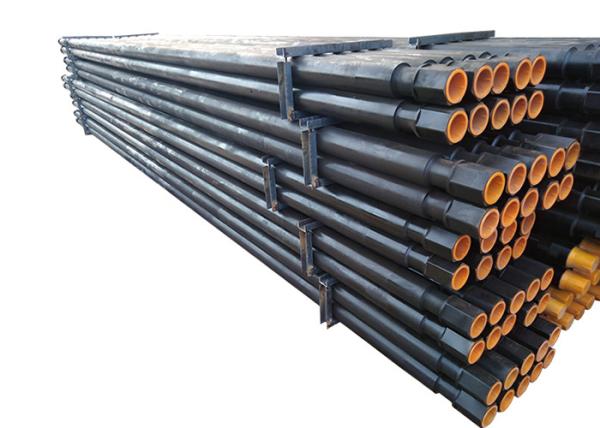

Ingersoll Rand API Water Well Tools All Types Water Well Drill Pipe Forging Energy and Mining Hot Sale
Introduction
Strict process test, 100% of friction welding zone passes
ultrasonic and magnetic particle inspection, and heat affected zone
is tested for hardness.
| Processing type | Forging |
| Machine type | Drilling Equipment |
| Type | Drill Pipe |
| Advantage | Reliable Material And Long Service Life |
| OD A | 4 1/2" |
| Wall B | 0.337" |
| Length L | 25' |
| Weight 1bs | 415 |
| Dist From ShoulderC | 3" |
| Across Flat E | 3 1/2" |
| Recess DIA F | 3 1/2" |
| Recess Location H | 3 1/2" |
| Recess Length K | 5" |
| Across Hex M | 3 3/8" |
| Connection | 4" |
| P/M | 3 1/2 Reg |
advantage
1. Alloy steel with a combination of hardness and wear resistance,
provided by the country's top special steel manufacturers. (Tube
thickness and material can be selected by the user).
2. Traditionally, the threads and joints between the pipe and the
end piece are fragile. To address this, we friction welded the
joints for maximum strength and heat treated the end pieces for
optimum durability.
Drill pipe usage notes
1. New drill pipe should be pasted thread oil before connection
2. Make up and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to costumer special requirement.
Our Services
1. Drill pipe strictly in accordance with ISO9001 standard
2. If you find a quality problem within one month of the package being returned.
3. All obligations and responsibilities are strictly performed in accordance with the contract
4. 24-hour online customer service, feel free to contact us.
|
|
