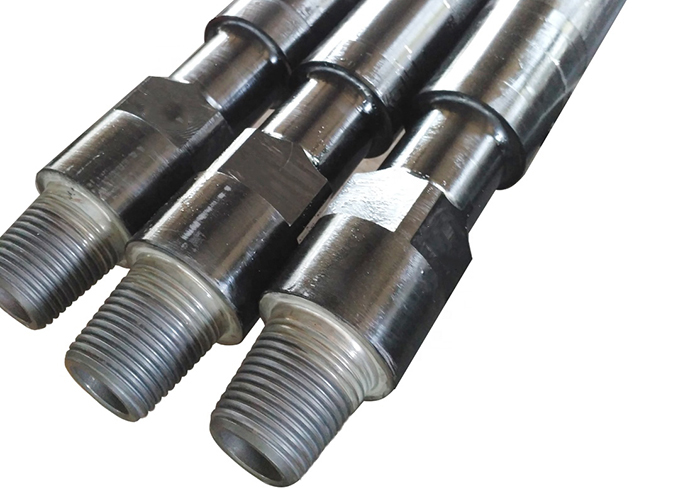

High Manufacturer Price API Thread Grade G105 Steel 114mm Ingersoll-Rand Drill Pipe
Description
A casing is a large diameter pipe used as a structural retainer for the walls of an oil and gas well or wellbore. It is inserted into the wellbore and held in place to protect the subterranean formation and wellbore from collapse and to allow drilling fluid circulation and extraction to occur
| Processing type | Forging |
| Machine type | Drilling Equipment |
| Type | Drill Pipe |
| Advantage | Reliable Material And Long Service Life |
| OD A | 4 1/2" |
| Wall B | 0.337" |
| Length L | 25' |
| Weight 1bs | 415 |
| Dist From ShoulderC | 3" |
| Across Flat E | 3 1/2" |
| Recess DIA F | 3 1/2" |
| Recess Location H | 3 1/2" |
| Recess Length K | 5" |
| Across Hex M | 3 3/8" |
| Connection | 4" |
| P/M | 3 1/2 Reg |
Features
1. High hardness and wear-resistant composite alloy steel provided
by top national special steel manufacturers
2. The pipe joint is made of upsetting forging, the hardness is
increased, and the wear resistance is better.
3. Couplings and pipes are friction welded, and heat treated end
pieces for optimum durability.
4. Pipe chemistry with our quenching and tempering heat treatment
Drill pipe usage notes
1. New drill pipe should be pasted thread oil before connection
2. Make up and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to costumer special requirement.
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is
stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or
anti-corrosion oil before transportation. If you need galvanized
pipe, please contact us.
|
|
