Langfang Budweiser drilling tool manufacturing Co., Ltd
6 Years
| Ask Lasest Price | |
| Brand Name : | BaiWei |
| Price : | Negotiable |
| Payment Terms : | T/T30%70% |
| Supply Ability : | 1000sets per month |
| Delivery Time : | 15-20 working days, which will be adjusted according to different products and inventory |
| Model Number : | 219mm*9144mm |
| Certification : | ISO9001 |

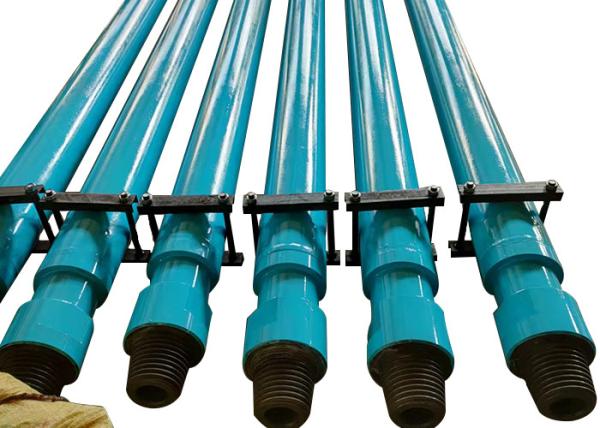

Dia 219mm Dth 30FeeT Water Well Drill Pipe Blue Colour R780 GRADE
Water well mining DTH drill pipe for water well drilling
Product Description
1. Big rigidity
2. Good sealing capacity
3. Flat outer structure
4. Low torque and resistance when rotating
Features
1. Tube body: cold drawn seamless tube with accurate tube diameter
and good righting.
2. The material of the pipe body is the same grade as and Atlas
3. Threaded joint: heat treatment and nitrogen treatment make the
pipeline more durable and easier to load and unload.
| OD A | Wall B | Length L | Weight lbs | ID Pin C | Across Flat D | Flat Length E | Dist From Shoulder F | Flat Length G | Across Flat H | Connection |
| 3.5" | .315" | 20' | 245 | 1.75" | 2.75" | 12.5" | 3.25" | 2.25" | 3.25" | 2 3/8IF |
| 4.5" | .337" | 20' | 345 | 1.75" | 3" | 12.5" | 3.25" | 2.375" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 20' | 345 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 25' | 430 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 25' | 430 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 30' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 25' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 30' | 615 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .750" | 25' | 805 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 25' | 695 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 30' | 775 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 30' | 1100 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 25' | 930 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 25' | 1045 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 30' | 1240 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is
stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or
anti-corrosion oil before transportation. If you need galvanized
pipe, please contact us.
|
|
