| Brand Name : | BaiWei |
| Model Number : | 4.5" |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Delivery Time : | 20-30 working days, which will be adjusted according to different products and inventory |

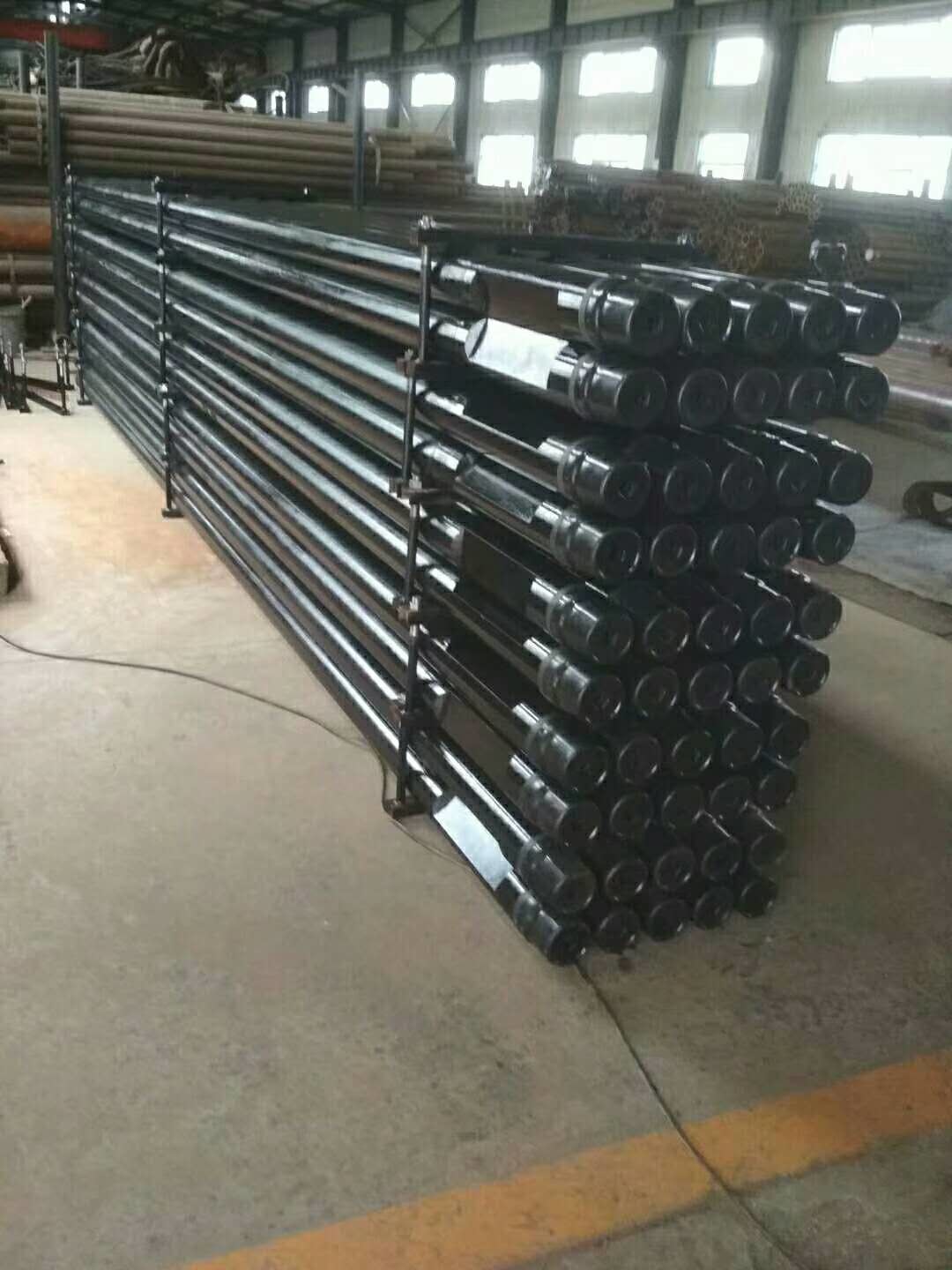

Pipe Water Well Drill Pipe Steel Pipe For Water Well Drilling
Extension and milling of joint
Product Description
The drill pipe used for applications such as DTH / DTHR / DR mainly consists of a steel tube, one end of which is a pin and the other end is a box. The job of the drill pipe is to transfer the rotating torque and thrust from the rotating head of the drilling rig to the downhole drilling tool.
According to different applications, drill pipes of different diameters are required. Basically, a smaller DTH hammer requires a smaller DTH drill pipe, and vice versa. Usually we provide 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm, 127mm, 140mm, 159mm.
Usually, these threads are standard API connections, such as 2 3/8" API REG threads, 3 1/2" API REG threads or API IF threads, etc. According to customer requirements, pipe lengths from 1000mm to 6000mm can be provided.
| OD A | Wall B | Length L | Weight lbs | ID Pin C | Across Flat D | Flat Length E | Dist From Shoulder F | Flat Length G | Across Flat H | Connection |
| 3.5" | .315" | 20' | 245 | 1.75" | 2.75" | 12.5" | 3.25" | 2.25" | 3.25" | 2 3/8IF |
| 4.5" | .337" | 20' | 345 | 1.75" | 3" | 12.5" | 3.25" | 2.375" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 20' | 345 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 25' | 430 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 25' | 430 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 30' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 25' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 30' | 615 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .750" | 25' | 805 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 25' | 695 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 30' | 775 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 30' | 1100 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 25' | 930 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 25' | 1045 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 30' | 1240 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
Drill pipe usage notes
1. New drill pipe should be pasted oil before connection
2. Make up and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to
clients’ special requirements
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is
stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or
anti-corrosion oil before transportation. If you need galvanized
pipe, please contact us.
|
|
