9.19mm Wall Thickness IEU Upset Forges NC50 Spiral Drill Pipe

Ask Lasest Price
Brand Name :	Long way
Price :	Negotiable
Payment Terms :	T/T
Delivery Time :	20-30 working days, which will be adjusted according to different products and inventory

Add to Cart

Product Details
Company Profile

9.19mm Wall Thickness IEU Upset Forges NC50 Spiral Drill Pipe

9.19 Mm Wall Thickness IEU Upset Forge HDD Drill Pipe

Product Detail

Model No.:DIA 127

Production Capacitenough

Delivery Date:30 days after payment

trenchless drill rod:HDD

Means of Transport:Ocean,Land,Air

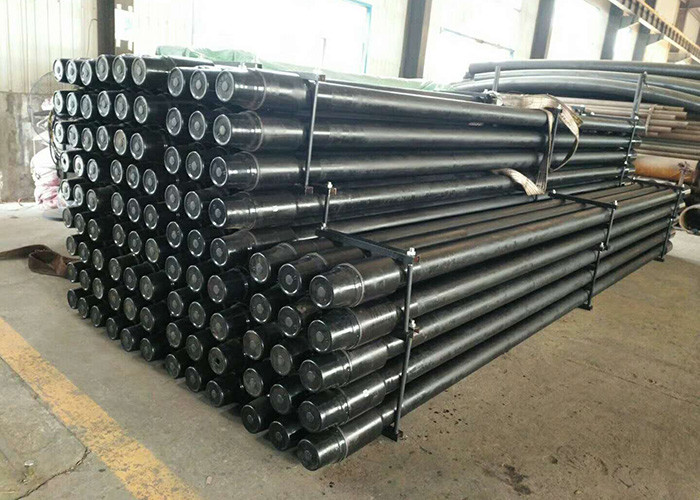

Packing:with iron

Application:Others

Brand Name:Long way

Product Description

Drill pipe joints adopt the double ledge (double top) structure. Such structure can enhance the tightness of joints so that the pressure of the mud could realize non-leakage half-way. Greatly reduce the resistance to pilot drilling and back, using this structure improves the torsional strength of drill pipe so that the box thread will not deformed.

Product Specifications

Diameter		Wall Thickness		Length		Tool Joint OD		Upset Forge	Thread	Steel Grade
(mm)	(in)	(mm)	(in)	(m)	(ft)	(mm)	(in)
Φ127	5	9.19	0.36"	6	19.69	168	6.63*	IEU	NC50	G
				9	29.53
		12.7	0.5"	9.6	31.50					S

Product series

Brand	Model	Length(shoulder- to-shoulder)	Outside Diameter	Tool Joint OD	Wall Thickness	Steel Grade
CASE	Case6010	120"±0.5"	1.9"±0.031"	2.25*±0.16"	0.24"	S135
CASE	Case6030	120"±0.5"	2.375"0.031	2.625"±0.16"	0.28"	S135
VERMEER	D10X15	120"±0.5"	1.66"±0.31"	1.88"±0.16"	0.24"	S135
	D16x20/D18x22	120"±0.5"	1.9"±0.31"	2.125"±0.16"	0.24"	S135
	D24X40F/D24X40LW	120"±0.5"	2.375"±0.31"	2.625"±0.16"	0.28"	S135
	D33X44ID40x40	180"±0.5"	2.375"±0.31"	2.625"±0.16"	0.28"	S135
	D50X100	180"±0.5"	2.875"±0.31"	3.25"±0.16"	0.362"	S135
	D80X100	180"±0.5"	3.5"±0.31"	3.625"±0.16"	0.368	S135
	D100X120	240"±0.5"	3.5"±0.31"	4.125"±0.16"	0.368*	S135
	D130X120	240"±0.5"	3.5"±0.31"	4.125"±0.16"	0.368*	S135
DITCH WITCH	JT1720/1720V	118"±0.5"	2.063"±0.31"	2.5"	0.27"	S135
	JT2020	118"±0.5"	2.063"±0.31"	2.625*	0.27*	S135
	JT2720/2720V	118"±0.5"	2.375"±0.31"	2.75*	0.28"	S135
	JT2720M1	118"±0.5"	2.375"±0.31"	3	0.28%	S135
	JT4020	117.2"±0.5"	2.875"±0.31"	3.25"	0.362*	S135
	JT4020M1	117.2"±0.5"	2.875"±0.31"	3.5"	0.362*	S135
	JT7020	117.2"±0.5"	3.5"±0.31"	4"	0.368*	S135

Diameter		Wall Thickness		Length		Weight	Tool Joint OD		Thread	Steel Grade	Torque Limit		Min.Bend Radius
(mm)	(in)	(mm)	(in)	(m)	(ft)	(Kg)	(mm)	(in)			(KN.m)	(Lb.ft)	(m)	(ft)
50	2	6.5	0.256	2	6.56	17	53	2.09	ZX50	G	2.9	2140	38	124.67
				2.5	8.20	20				S	3	2214	30	98.43
60	2 3/8"	7.1	0.28	2	6.56	23	68	2.68	ZX60	G	6	4428	42	137.79
				3	9.84	32				S	6.3	4650	33	108.27
73	2 7/8"	8	0.315	3	9.84	43	78	3.23	NC23	G	12	8856	58	190.29
				4	13.12	57				S	13	9594	45	147.69
76	3	9	0.354	3	9.84	56	88	3.47	NC26	G	14	10332	62	203.41
				4	13.12	71				S	16.5	12177	56	183.73
83	3 1/4*	9	0.354	3	9.84	57	92	3.62	D80 NC26	G	16.8	12398	73	239.50
				4.5	14.76	79				S	18	13284	65	213.26
89	3 1/2"	9.35	0.368	4.5	14.76	99	105	4.13	NC31	G	22.3	16457	80	262.47
				6	19.69	128				S
102	4	10	0.394	6	19.69	160	123	4.41	NC38	G	38	28044	90	295.28
										S	48	35424	82	296.03
114	4 1/2"	10	0.394	6	19.69	162	127	5	NC38 NC40	G	50	36900	98	321.52
										S	64	47232	90	295.28
114	4 1/2"	10	0.394	6	19.69	178	157	6.18	NC46	G	50	36900	98	321.52
										S	64	47232	90	295.28

Our Services:

Drill pipe strictly according to API ISO9001 standard.
If you found to quality problems within one month of the package returned. All strictly according to the contract and fulfill the obligations and responsibilities
24 hours online customer service,feel free contact us.

9.19mm Wall Thickness IEU Upset Forges NC50 Spiral Drill Pipe

About us

LangFang Baiwei Drill Co.,Ltd located in the center of Beijing, Tianjin and Hebei-Yongqing Industrial Area. Langfang Hebei.
Our company is a drilling tools manufacturing enterprisewith integration of design, geological, well, double wall, oil, auger and other special drilling pipes. And trenchless special drilling tools such as pilot guide bits,swivels, reamers, sub saver, pneumatic pipe rammer, pipe bursting machine.
