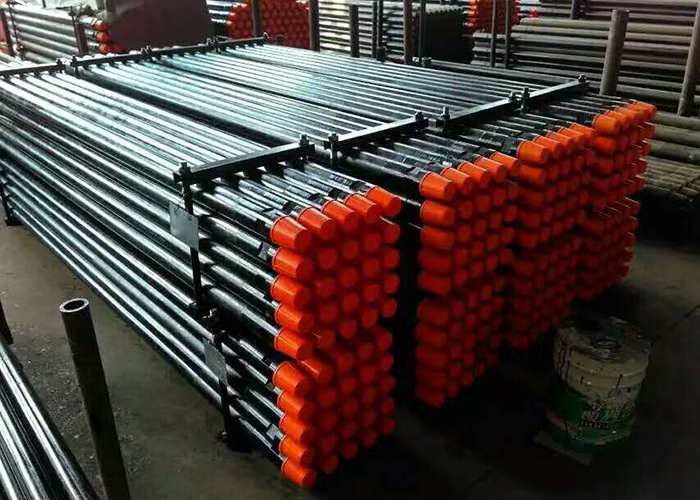

ZX60 Thread Double Top Structure HDD Drill Pipe
Product Description
Product Detail
Specifications
| Diameter | Wall Thickness | Length | Weight | Tool Joint OD | Thread | Steel Grade | Torque Limit | Min.Bend Radius | ||||||
| (mm) | (in) | (mm) | (in) | (m) | (ft) | (Kg) | (mm) | (in) | (KN.m) | (Lb.ft) | (m) | (ft) | ||
| 50 | 2 | 6.5 | 0.256 | 2 | 6.56 | 17 | 53 | 2.09 | ZX50 | G | 2.9 | 2140 | 38 | 124.67 |
| 2.5 | 8.20 | 20 | S | 3 | 2214 | 30 | 98.43 | |||||||
| 60 | 2 3/8" | 7.1 | 0.28 | 2 | 6.56 | 23 | 68 | 2.68 | ZX60 | G | 6 | 4428 | 42 | 137.79 |
| 3 | 9.84 | 32 | S | 6.3 | 4650 | 33 | 108.27 | |||||||
| 73 | 2 7/8" | 8 | 0.315 | 3 | 9.84 | 43 | 78 | 3.23 | NC23 | G | 12 | 8856 | 58 | 190.29 |
| 4 | 13.12 | 57 | S | 13 | 9594 | 45 | 147.69 | |||||||
| 76 | 3 | 9 | 0.354 | 3 | 9.84 | 56 | 88 | 3.47 | NC26 | G | 14 | 10332 | 62 | 203.41 |
| 4 | 13.12 | 71 | S | 16.5 | 12177 | 56 | 183.73 | |||||||
| 83 | 3 1/4* | 9 | 0.354 | 3 | 9.84 | 57 | 92 | 3.62 | D80 NC26 | G | 16.8 | 12398 | 73 | 239.50 |
| 4.5 | 14.76 | 79 | S | 18 | 13284 | 65 | 213.26 | |||||||
| 89 | 3 1/2" | 9.35 | 0.368 | 4.5 | 14.76 | 99 | 105 | 4.13 | NC31 | G | 22.3 | 16457 | 80 | 262.47 |
| 6 | 19.69 | 128 | S | |||||||||||
| 102 | 4 | 10 | 0.394 | 6 | 19.69 | 160 | 123 | 4.41 | NC38 | G | 38 | 28044 | 90 | 295.28 |
| S | 48 | 35424 | 82 | 296.03 | ||||||||||
| 114 | 4 1/2" | 10 | 0.394 | 6 | 19.69 | 162 | 127 | 5 | NC38 NC40 | G | 50 | 36900 | 98 | 321.52 |
| S | 64 | 47232 | 90 | 295.28 | ||||||||||
| 114 | 4 1/2" | 10 | 0.394 | 6 | 19.69 | 178 | 157 | 6.18 | NC46 | G | 50 | 36900 | 98 | 321.52 |
| S | 64 | 47232 | 90 | 295.28 | ||||||||||
| Brand | Model | Length(shoulder- to-shoulder) | Outside Diameter | Tool Joint OD | Wall Thickness | Steel Grade |
| CASE | Case6010 | 120"±0.5" | 1.9"±0.031" | 2.25*±0.16" | 0.24" | S135 |
| Case6030 | 120"±0.5" | 2.375"*0.031* | 2.625"±0.16" | 0.28" | S135 | |
| VERMEER | D10X15 | 120"±0.5" | 1.66"±0.31" | 1.88"±0.16" | 0.24" | S135 |
| D16x20/D18x22 | 120"±0.5" | 1.9"±0.31" | 2.125"±0.16" | 0.24" | S135 | |
| D24X40F/D24X40LW | 120"±0.5" | 2.375"±0.31" | 2.625"±0.16" | 0.28" | S135 | |
| D33X44ID40x40 | 180"±0.5" | 2.375"±0.31" | 2.625"±0.16" | 0.28" | S135 | |
| D50X100 | 180"±0.5" | 2.875"±0.31" | 3.25"±0.16" | 0.362" | S135 | |
| D80X100 | 180"±0.5" | 3.5"±0.31" | 3.625"±0.16" | 0.368 | S135 | |
| D100X120 | 240"±0.5" | 3.5"±0.31" | 4.125"±0.16" | 0.368* | S135 | |
| D130X120 | 240"±0.5" | 3.5"±0.31" | 4.125"±0.16" | 0.368* | S135 | |
| DITCH WITCH | JT1720/1720V | 118"±0.5" | 2.063"±0.31" | 2.5" | 0.27" | S135 |
| JT2020 | 118"±0.5" | 2.063"±0.31" | 2.625* | 0.27* | S135 | |
| JT2720/2720V | 118"±0.5" | 2.375"±0.31" | 2.75* | 0.28" | S135 | |
| JT2720M1 | 118"±0.5" | 2.375"±0.31" | 3 | 0.28% | S135 | |
| JT4020 | 117.2"±0.5" | 2.875"±0.31" | 3.25" | 0.362* | S135 | |
| JT4020M1 | 117.2"±0.5" | 2.875"±0.31" | 3.5" | 0.362* | S135 | |
| JT7020 | 117.2"±0.5" | 3.5"±0.31" | 4" | 0.368* | S135 |
Quality Control
Quality guarantee is not only responsible for customers, but also the assurance of enterprise's steady development. The necessary test equipment and the effective & perfect production process control is the assurance of product quality. Taking the spirit of "To win the market with innovation, to serve the customers with friendship, to build the brand with quality, to develop the enterprise with sincerity", we utilize the advanced testing methods to make each product meticulously.
|
|
