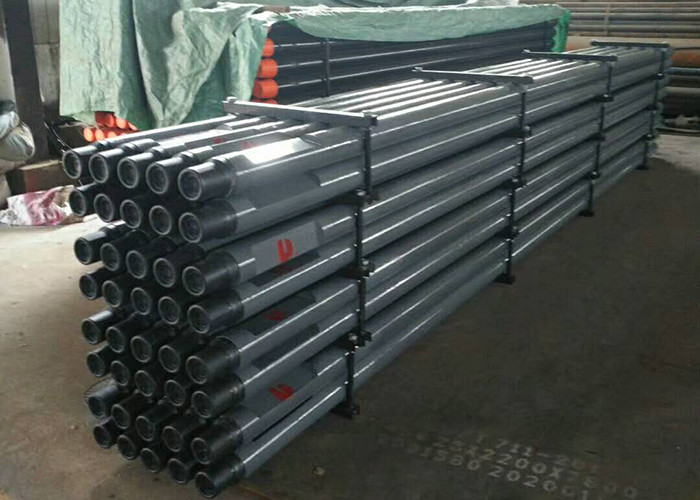

Rotary Drilling Rod Pipe Well Drilling Extension Drill Rod
Product Description
Drill pipes that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel pipe with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools.According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice versa.
| OD A | Wall B | Length L | Weight lbs | ID Pin C | Across Flat D | Flat Length E | Dist From Shoulder F | Flat Length G | Across Flat H | Connection |
| 3.5" | .315" | 20' | 245 | 1.75" | 2.75" | 12.5" | 3.25" | 2.25" | 3.25" | 2 3/8IF |
| 4.5" | .337" | 20' | 345 | 1.75" | 3" | 12.5" | 3.25" | 2.375" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 20' | 345 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 25' | 430 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .337" | 25' | 430 | 2 1/8" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 2 7/8 IF |
| 4 1/2" | .337" | 30' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 25' | 510 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .500" | 30' | 615 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 4 1/2" | .750" | 25' | 805 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 25' | 695 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .500" | 30' | 775 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 30' | 1100 | 1 3/4" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4" | 3 1/2 Reg |
| 5" | .750" | 25' | 930 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 25' | 1045 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
| 5 1/2" | .750" | 30' | 1240 | 1 1/2" | 3" | 12 1/2" | 3 1/4" | 2 3/8" | 4 5/8" | 3 1/2 Beco |
Drill pipe usage notes
1. New drill pipe should be oiled before connecting
2. Trim and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to
the special requirements of customers
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is
stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or
anti-corrosion oil before transportation. If you need galvanized
pipe, please contact us.
|
|
