| Brand Name : | BaiWei |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Delivery Time : | 20-30 working days, which will be adjusted according to different products and inventory |

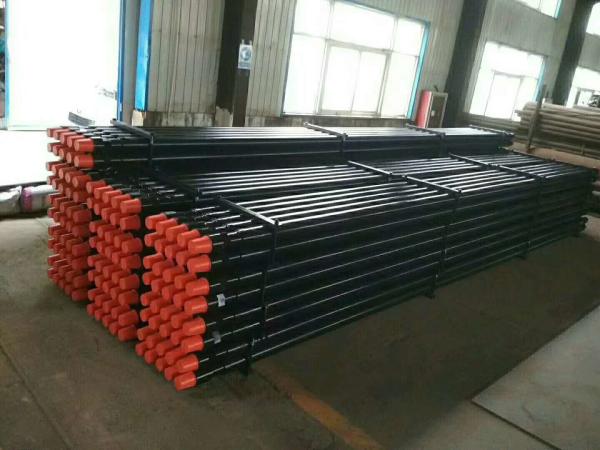

API Flat Drill Rod G105 7.6m Ingersoll Rand T4 Water Well Drill Pipe
Description
It is used for sand control in wells with high pressure and high
traction value due to the depths.
Having the API casing inside a wire wrap screen jacket is
supporting the screen and enhance the cabapitities and high tensil
strength Loads.
Pipe base can be made from API pipe Seamless casing spiral or
stainless steel casing
| Processing type | Forging |
| Machine type | Drilling Equipment |
| Type | Drill Pipe |
| Advantage | Reliable Material And Long Service Life |
| OD A | 4 1/2" |
| Wall B | 0.750" |
| Length L | 25' |
| Weight 1bs | 830 |
| Dist From ShoulderC | 3" |
| Across Flat E | 3 1/2" |
| Recess DIA F | 3 1/2" |
| Recess Location H | 3 1/2" |
| Recess Length K | 5" |
| Across Hex M | 3 3/8" |
| Connection | 4" |
| P/M | 3 1/2 Reg |
Products Advantages
High strength mechanical properties
Special smelting engineering design is selected for joint and tube body with special chemical composition and strict control of manufacturing process.
Long service life
All threads and sealing surfaces shall be phosphated to prevent sticking and corrosion.
The wear-resistant belt and pad of the joint can prolong service life.
Production equipments imported from germany
Each heat treatment welding zone is quenched and tempered by heat treatment system to ensure the strength and toughness of the welding zone and the quality is stable.
Strict process testing
100% of the friction welding areas pass the ultrasonic and magnetic particle inspection, and the hardness test is carried out in the heat affected zone.
Advanced manufacturing technology
The drill rods adopt advanced thread manufacturing technology and advanced surface treatment technology, and are manufactured according to precise tolerances.
They have the characteristics of tight connection, good energy transmission effect, strong wear resistance and easy disassembly.
Drill pipe usage notes
1. New drill pipe should be pasted thread oil before connection
2. Make up and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to costumer special requirement.
Our Services
1. Drill pipe strictly according to API ISO9001 standard
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us.
|
|
