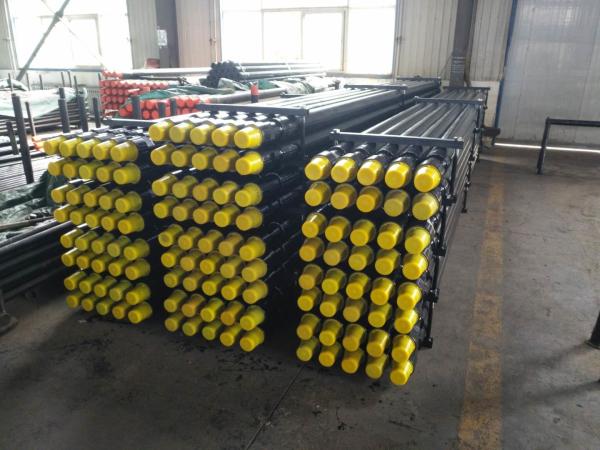

High Durable API 114mm Ingersoll Rand T4 Drill Pipe
Description
It is used for sand control in wells with high pressure and high
traction value due to the depths.
Having the API casing inside a wire wrap screen jacket is
supporting the screen and enhance the cabapitities and high tensil
strength Loads.
Pipe base can be made from API pipe Seamless casing spiral or
stainless steel casing
| Processing type | Forging |
| Machine type | Drilling Equipment |
| Type | Drill Pipe |
| Advantage | Reliable Material And Long Service Life |
| OD A | 4 1/2" |
| Wall B | 0.337" |
| Length L | 30' |
| Weight 1bs | 490 |
| Dist From ShoulderC | 3" |
| Across Flat E | 3 1/2" |
| Recess DIA F | 3 1/2" |
| Recess Location H | 3 1/2" |
| Recess Length K | 5" |
| Across Hex M | 3 3/8" |
| Connection | 4" |
| P/M | 3 1/2 Reg |
Products Advantages
High strength mechanical properties
Special smelting engineering design is selected for joint and tube body with special chemical composition and strict control of manufacturing process.
Production equipments imported from germany
Each heat treatment welding zone is quenched and tempered by heat treatment system to ensure the strength and toughness of the welding zone and the quality is stable.
Application
Tunnelling, Mining, Quarrying, Blasting and Infrastructure Construction
Facedrilling and Bolting, Bench Drilling, Production drilling, Long hole drilling
Advanced manufacturing technology
The drill rods adopt advanced thread manufacturing technology and advanced surface treatment technology, and are manufactured according to precise tolerances.
They have the characteristics of tight connection, good energy transmission effect, strong wear resistance and easy disassembly.
Drill pipe quality control:
1. Before order to be confirmed, the raw material of pipe and tool joint body should be booked from famous big steel enterprises in China.
2. Checked by our QC staff and factory own laboratory.
3. Every drill pipe has nondestructive inspection , cleaned and breach oil before packing.
4. Before delivery clients could send one QC or point the third party to check the quality such SGS, BV or others.
|
|
