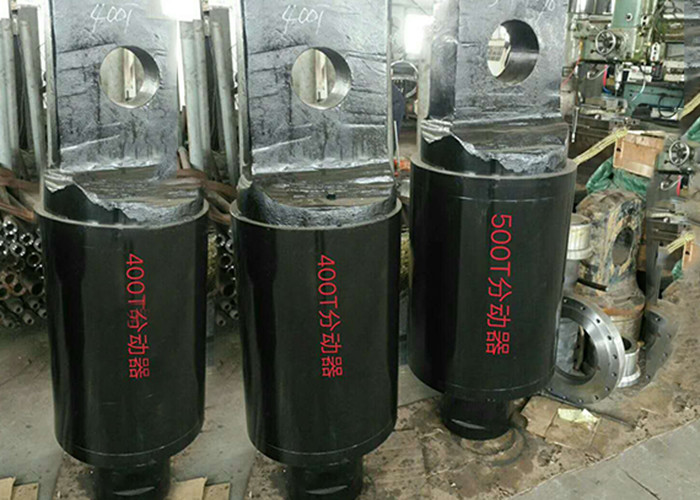

60T Swivel For Road Crossing Machine HDD Machine
Product Description
The BAIWEI Drill Pipe Swivel can be run on any string where
potential problems exist in reaching target depth due to frictional
issues, typically in long, horizontal extended reach drilling (ERD)
wells.
A drill-string deployed swivel tool, our Langwei™ Swivel
facilitates the rotation of the drill pipe above the liner in an
ERD well, reducing drag, redistributing friction and mitigating
helical buckling of the work-string. It also increases the
available weight to push completions and liners to target depth in
ERD wells.

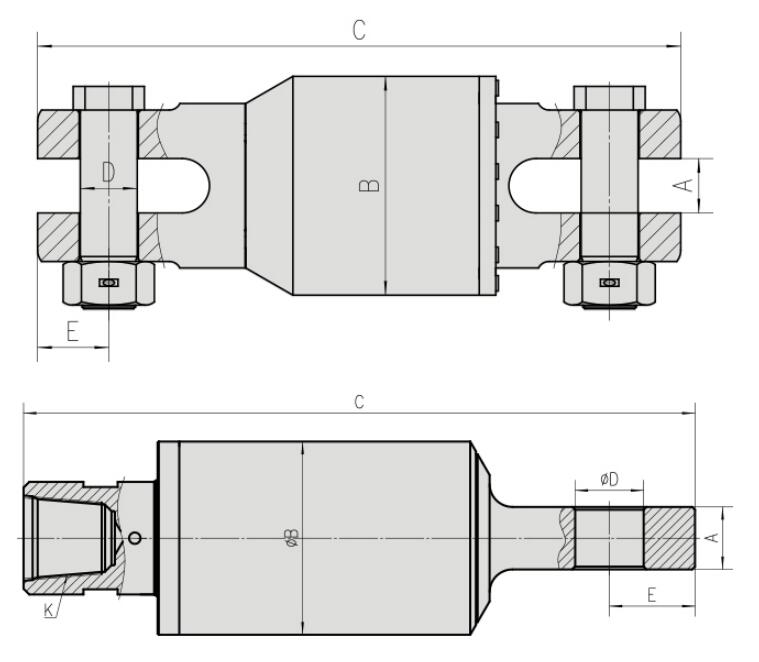

| Type | Traction end connection mode | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | kg |
| 10T Swivel Series | Binaural | 28 | 99 | 317 | 28 | 33 | 10.5 |
| 15T Swivel Series | Binaural | 32 | 109 | 360 | 32 | 38 | 19 |
| 18T Swivel Series | Binaural | 32 | 136 | 352 | 30 | 35 | 20.5 |
| 20T Swivel Series | Binaural | 36 | 146 | 415 | 36 | 44 | 26.5 |
| 25T Swivel Series | Binaural | 38 | 156 | 433 | 38 | 42 | 29 |
| 30T Swivel Series | Binaural | 39 | 166 | 477 | 40 | 50 | 41 |
| 40T Swivel Series | Binaural | 42 | 192 | 543 | 48 | 60 | 70 |
| 50T Swivel Series | Binaural | 61 | 210 | 571 | 59 | 75 | 100 |
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | kg | ||
| 50T Swivel Series | NC31 | 60 | 210 | 571 | 60 | 75 | 100 |
| 60T Swivel Series | NC38 | 65 | 234 | 672 | 65 | 90 | 125 |
| 80T Swivel Series | NC46 | 65 | 244 | 697 | 65 | 90 | 175 |
| 100T Swivel Series | NC50 | 85 | 270 | 821 | 84 | 108 | 240 |
| 150T Swivel Series | NC50 | 100 | 314 | 904 | 102 | 135 | 330 |
| 200T Swivel Series | NC50,5-1-2FH | 110 | 340 | 1177 | 118 | 150 | 415 |
| 300T Swivel Series | NC50,5-1-2FH | 125 | 390 | 1282 | 122 | 173 | 800 |
| 400T Swivel Series | 6-5-8FH | 150 | 480 | 1530 | 150 | 216 | 940 |
| 500T Swivel Series | 6-5-8FH | 170 | 570 | 1651 | 192 | 248 | 2010 |
Features
Swivel cap complete with lifting bail for hoisting cable
applications.
Specially designed bearing lubrication keeps contaminants away and
relieves excess lubrication pressure.
Suitable for use with water or drilling mud.
Easy servicing in the field with common tools.
Majority of components are common with underground compact plus
water swivel.
FAQ
Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is
stock).
Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.
Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.
Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.
Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or
anti-corrosion oil before transportation. If you need galvanized
pipe, please contact us.
|
|
